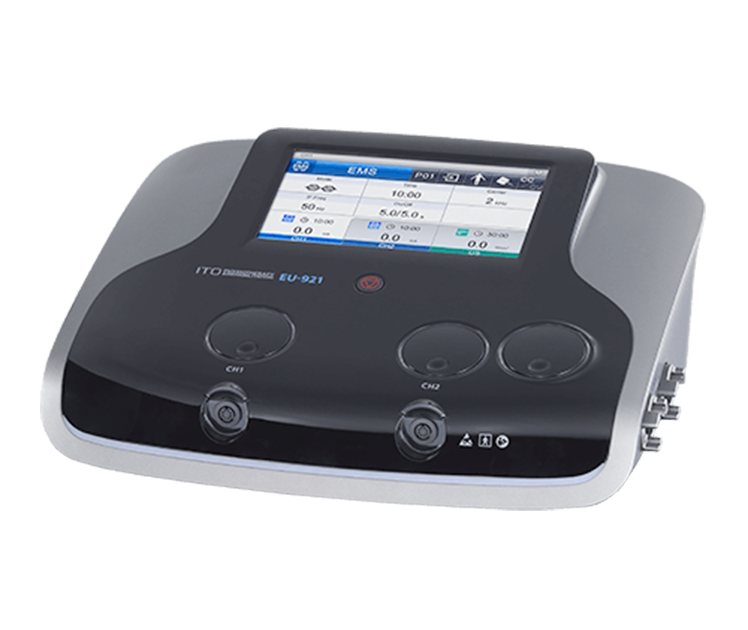

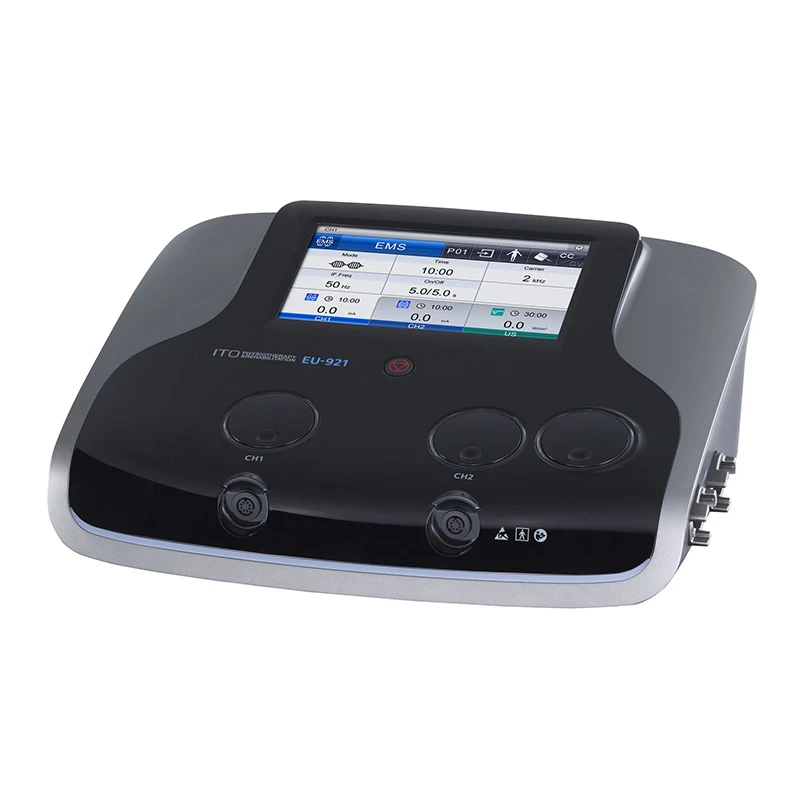

2-channel Electrotherapy/Ultrasound ComboEU-921
High-end Combination Unit with 3 Independent Channels and Body Diagram Installed
Features
- LOW BNR (Beam Non-uniformity Ratio)
- 47 EFFECTIVE CLINICAL PROGRAMS FOR OVER 30 TYPES OF PATHOLOGIES
- 13 TYPES OF FREQUENTLY USED CURRENT MODES INSTALLED
- VISUAL PROBE CONTACT STATUS
- 210 MEMORABLE PROGRAM NUMBERS
- SEQUENTIAL MODE
- CONSTANT CURRENT / CONSTANT VOLTAGE MODES
- EXCLUSIVE VACUUM UNIT AVAILABLE (Optional)
- MULTI-FREQUENCY TREATMENT PROBES (1MHz and 3MHz)
- and more
Features

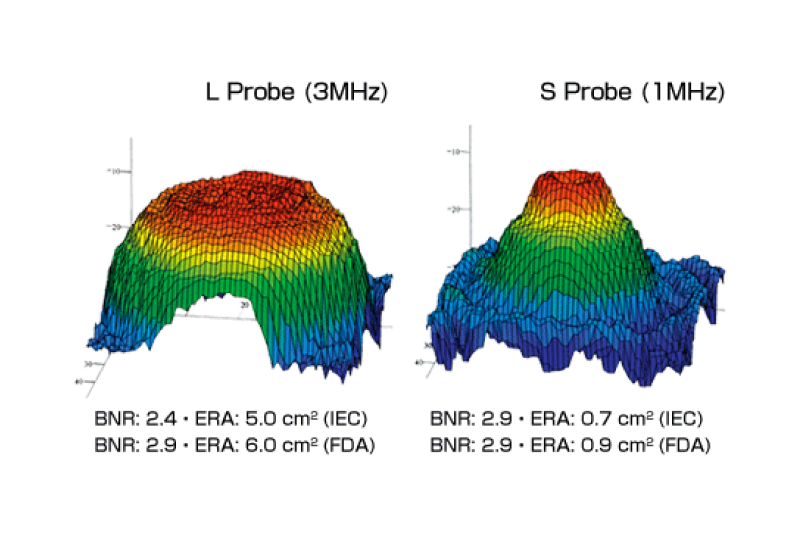

LOW BNR (Beam Non-uniformity Ratio)
BNR is one of the indications for quality of the ultrasound beam. The BNR of EU-921 is 2.4 to 4.6 (IEC standards), a significantly low ratio. Low beam non-uniformity ratio prevents hot spots and tissue damages.

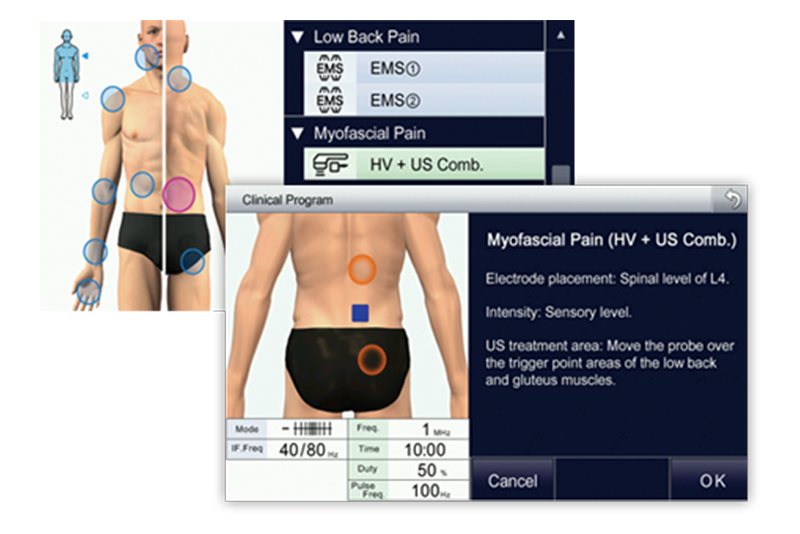

47 EFFECTIVE CLINICAL PROGRAMS FOR OVER 30 TYPES OF PATHOLOGIES
You can simply choose the area to be treated from Human Body Diagram. 47 therapy parameters are pre-programmed for over 30 types of typical pathologies. All the pre-programmed parameters can be modified to suit your particular needs.

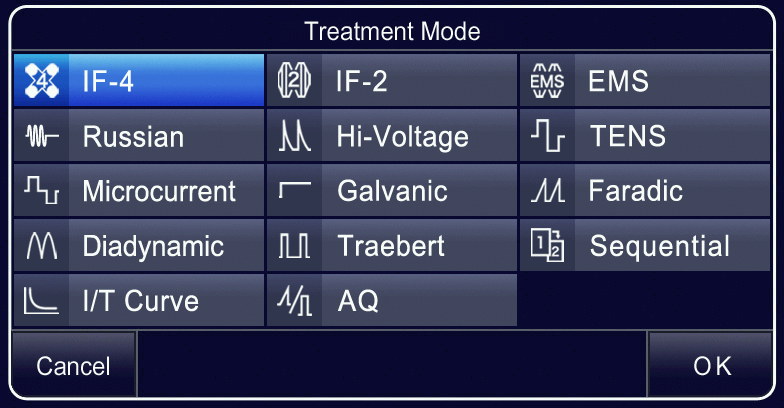

13 TYPES OF FREQUENTLY USED CURRENT MODES INSTALLED
AC: IF-4, IF-2, EMS, Russian, TENS, High Voltage (HV), Microcurrent (MCR)
DC: Galvanic, Faradic, Diadynamic, Traebert (Ultra Reiz)
Diagnostic: I/T curve and AQ

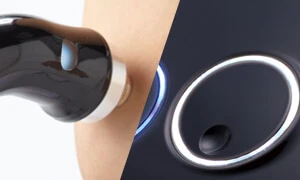

VISUAL PROBE CONTACT STATUS
Clear light indications on both ultrasound probe and main unit to visually check whether the ultrasound energy is safely and effectively conducted into human body.

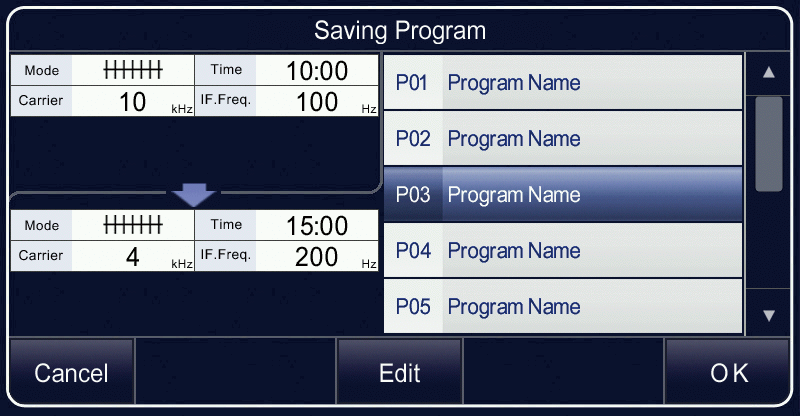

210 MEMORABLE PROGRAM NUMBERS
You can save 210 treatment parameters and quickly load & modify them as you like. This function facilitates treating numerous patients.

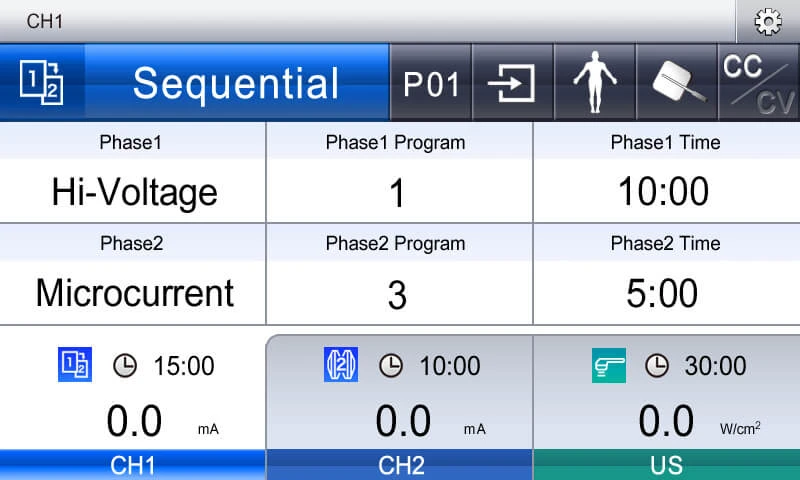

SEQUENTIAL MODE
This user-friendly treatment mode allows you to apply two designated therapeutic courses continuously without having to modify unit parameters.

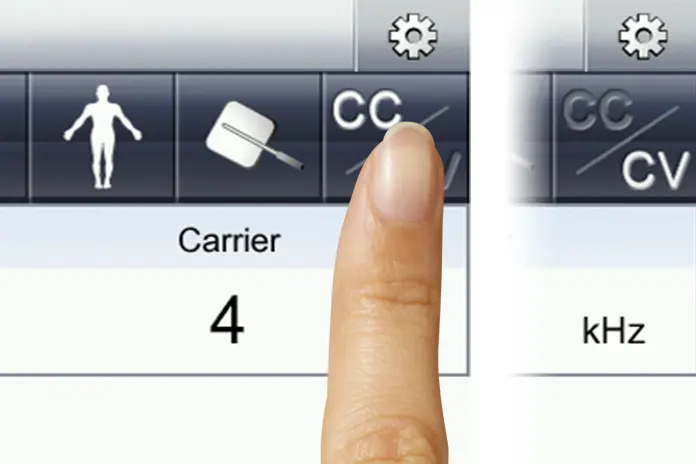

CONSTANT CURRENT / CONSTANT VOLTAGE MODES
Depending on current modes, you can select constant current mode (CC) or constant voltage mode (CV). CV mode automatically adjusts the amount of current transferred to skin when the device detects the change of resistance to the skin. This mode enhances safety.

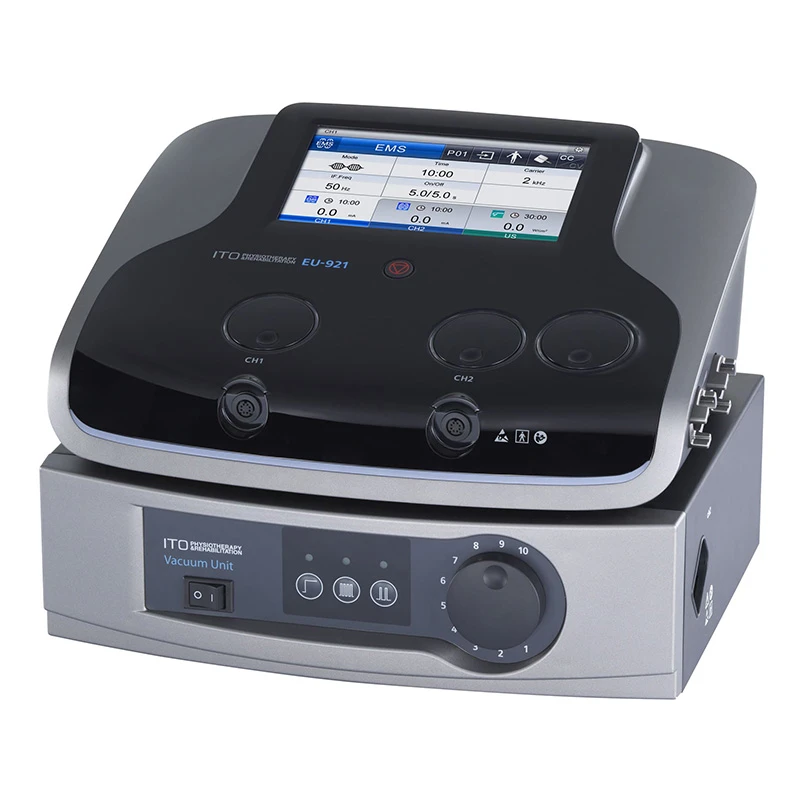

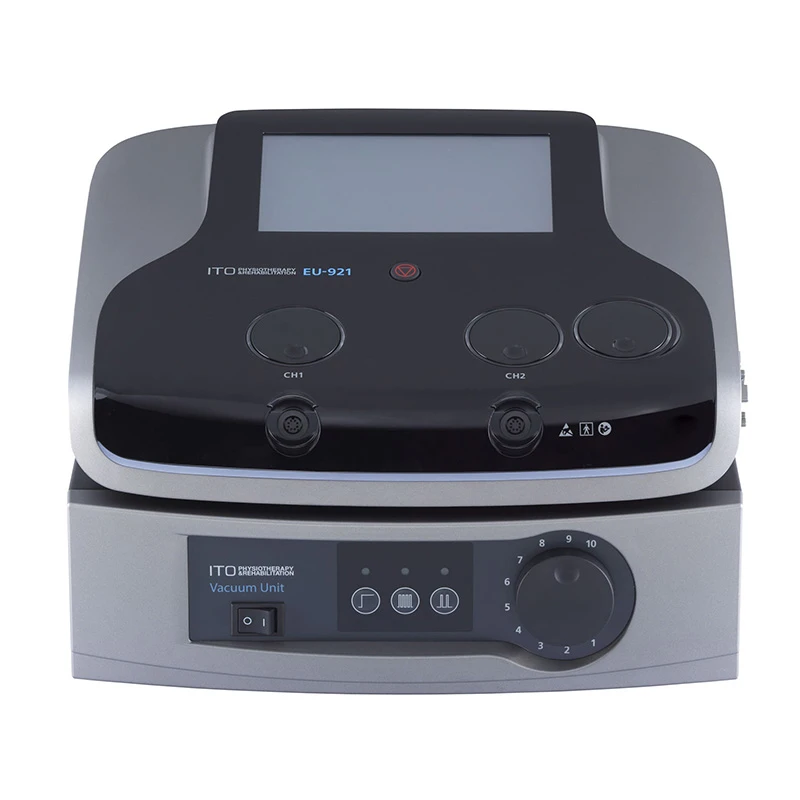

EXCLUSIVE VACUUM UNIT AVAILABLE (Optional)

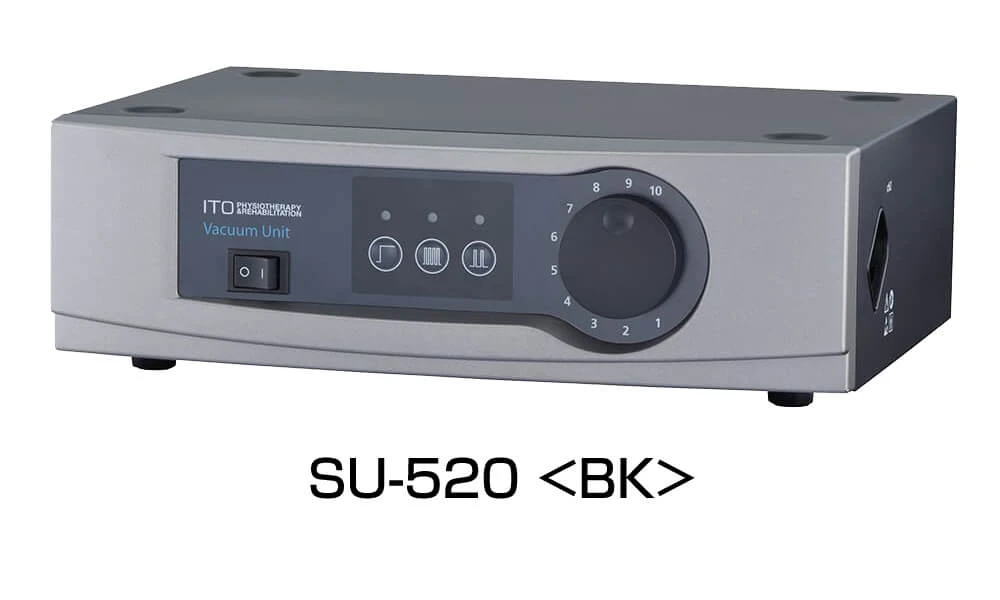

SU-520 <BK> is exclusively made for and combined to EU-921. Our unit adopts blow-out system which does not pull dusts nor contain humidity inside vacuum electrode. Therefore, our unit minimizes your work effort in maintenance.

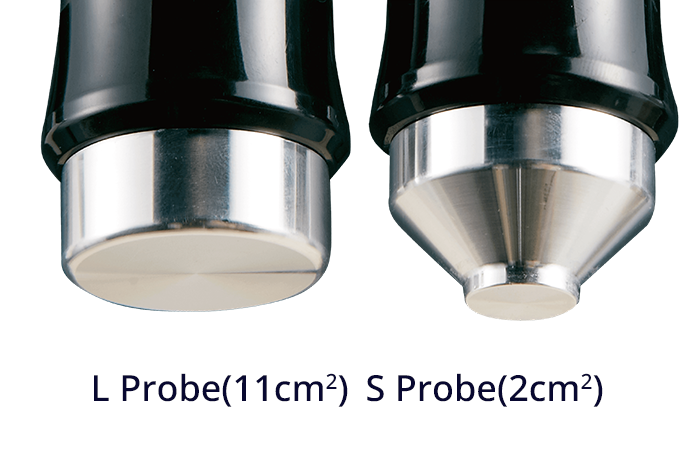

MULTI-FREQUENCY TREATMENT PROBES (1MHz and 3MHz)
Each probe is compatible with 1 MHz and 3 MHz. Treatment for various body parts is available by using L probe for broad body parts such as shoulder and waist, and S probe (optional accessory) for narrow ones such as finger and toes.

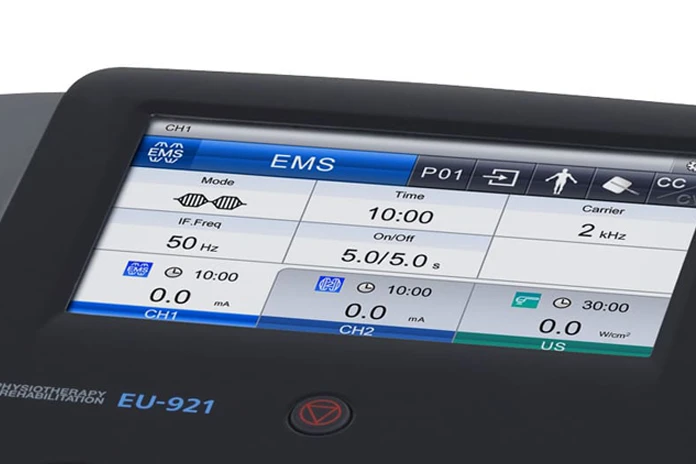

7-INCH TFT COLOR TOUCH SCREEN
The large color touch screen dramatically improves visibility and functionality. The screen is 20% larger than the screen used in previous models.

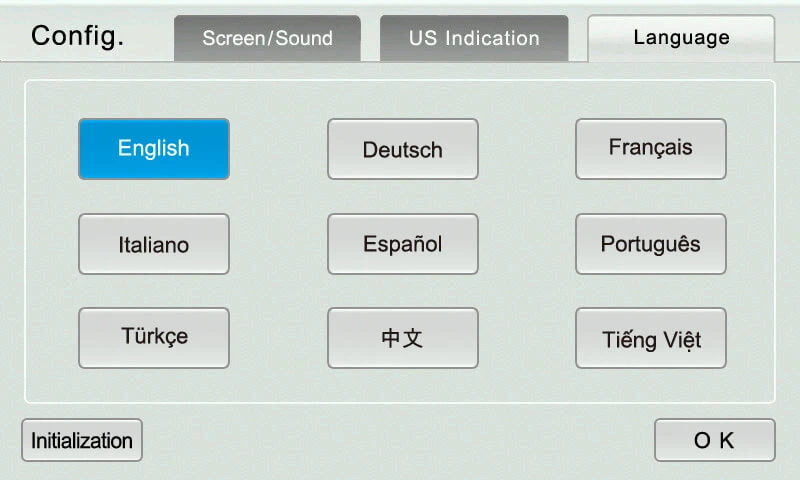

MULTI LANGUAGES
You can select language from English, German, French, Italian, Spanish, Portuguese, Turkish, Vietnamese & Chinese.
2 ULTRASOUND PROBES CONNECTABLE
You can connect both small(2 cm2) and large(11 cm2) head ultrasound probes to quickly change the treatment head.

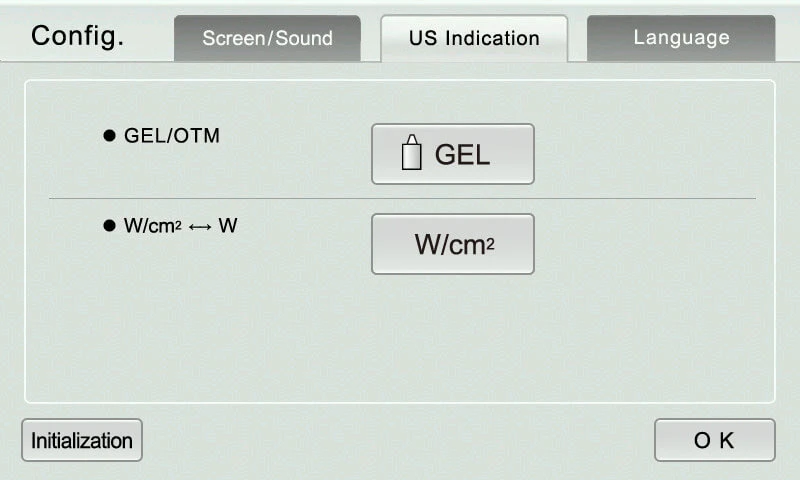

SELECTABLE COUPLING SENSITIVITY
You can select the appropriate coupling sensitivity between ultrasound gel and medicated gel.
MOVIE
Specifications
| Power supply | AC 100–240 V, 50/60 Hz |
|---|---|
| Power consumption | 140 VA |
| Number of channels | 3 independent (2 for electrotherapy, 1 for ultrasound) |
| Display | Full-color, 7" LCD touch screen |
| Safety class according to IEC 60601-1 | Class I, Type BF |
| Dimensions | 350 (W) x 270 (D) x 145 (H) mm |
| Weight | 3.5 kg |
Electrotherapy
| IF carrier frequency | 2 kHz, 4 kHz, 5 kHz, 8 kHz, 10 kHz |
|---|---|
| Vector sweep (for IF-4) | 0°, 15°, 30°, 45° |
| User-defined protocol memories | 120 |
| Pre-programmed clinical protocols | 28 |
| Timer | Max. 60 min. |
Ultrasound
| Ultrasound mode | Continuous, Pulsed (5%, 10%, 20%, 30%, 40%, 50%) |
|---|---|
| Ultrasound Intensity (max.) | Continuous: 2 W/cm2, Pulsed: 3 W/cm2 |
| Ultrasound frequency | 1 MHz, 3 MHz |
| Pulse frequency | 16 Hz, 48 Hz, 100 Hz |
| User-defined protocol memories | 10 (for US) / 80 (for Combo) |
| Pre-programmed clinical protocols | 18 (for US) / 1 (for Combo) |
| Timer | Max. 30 min. |
| Number of US Probe connections | 2 |
| Probe head diameter |
|
| BNR US Probe head (IEC Standards) |
|
| ERA US Probe head (IEC Standards) |
|
| Probe cable length | 2 m |
| Degree of protection against harmful ingress of water | IPX7 (US Probe) |
Current Details
| Current Mode | Waveform image | Output mode | Maximum amplitude (peak) | Frequency |
|---|---|---|---|---|
| IF-4 |  |
Constant, Sweep | 100 mA | 1-250 Hz |
| IF-2 |  |
Constant, Sweep | 100 mA | 1-250 Hz |
| EMS |  |
Surge Independent, Surge Co-Cont, Surge Alternate | 100 mA | 20-250 Hz |
| Russian |  |
Surge Independent, Surge Co-Cont, Surge Alternate | 100 mA | 2.5 kHz |
| High Voltage (HV) |  |
Constant, Sweep, Burst, Surge Independent, Surge Co-Cont, Surge Alternate | 600 mA | 0.5-200 Hz |
| TENS |  |
Constant, Sweep, Burst, Surge Independent, Surge Co-Cont, Surge Alternate | 100 mA | 0.5-250 Hz |
| Microcurrent (MCR) |  |
Constant | 750 μA | 0.2-400 Hz |
| Galvanic |  |
Continuous, Interrupted | 20 mA | 0.95-15.8 Hz |
| Faradic |  |
Surge Independent | 70 mA | 20-250 Hz |
| Diadynamic |  |
DF, MF, CP, CP-ISO, LP, RS | 70 mA | 50 Hz or 100 Hz |
| Traebert |  |
Constant | 70 mA | 142 Hz |
| I/T Curve · AQ |  |
Constant | 70 mA | I/T Curve: 0.33-0.5 Hz AQ: 0.33 Hz |
