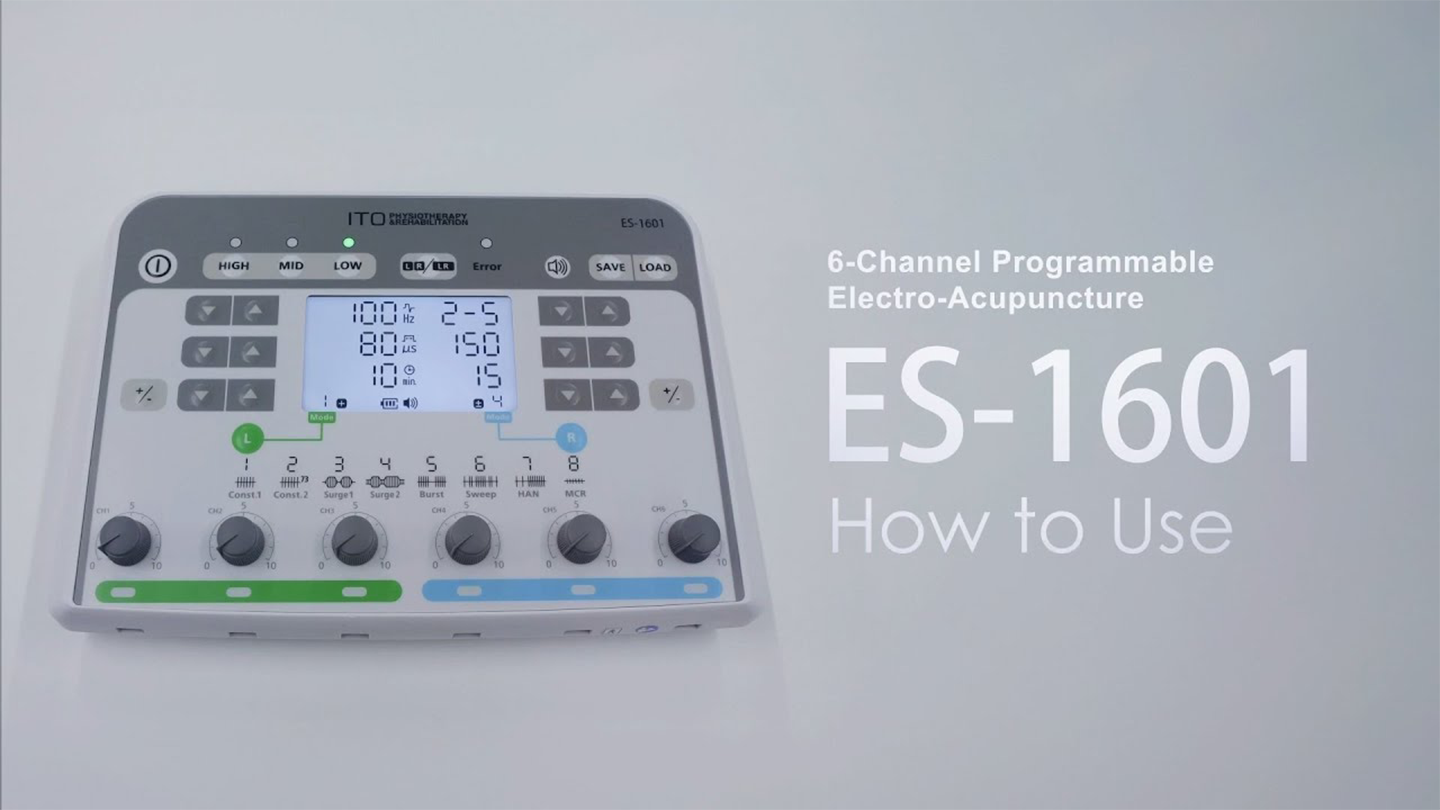

ES-1601

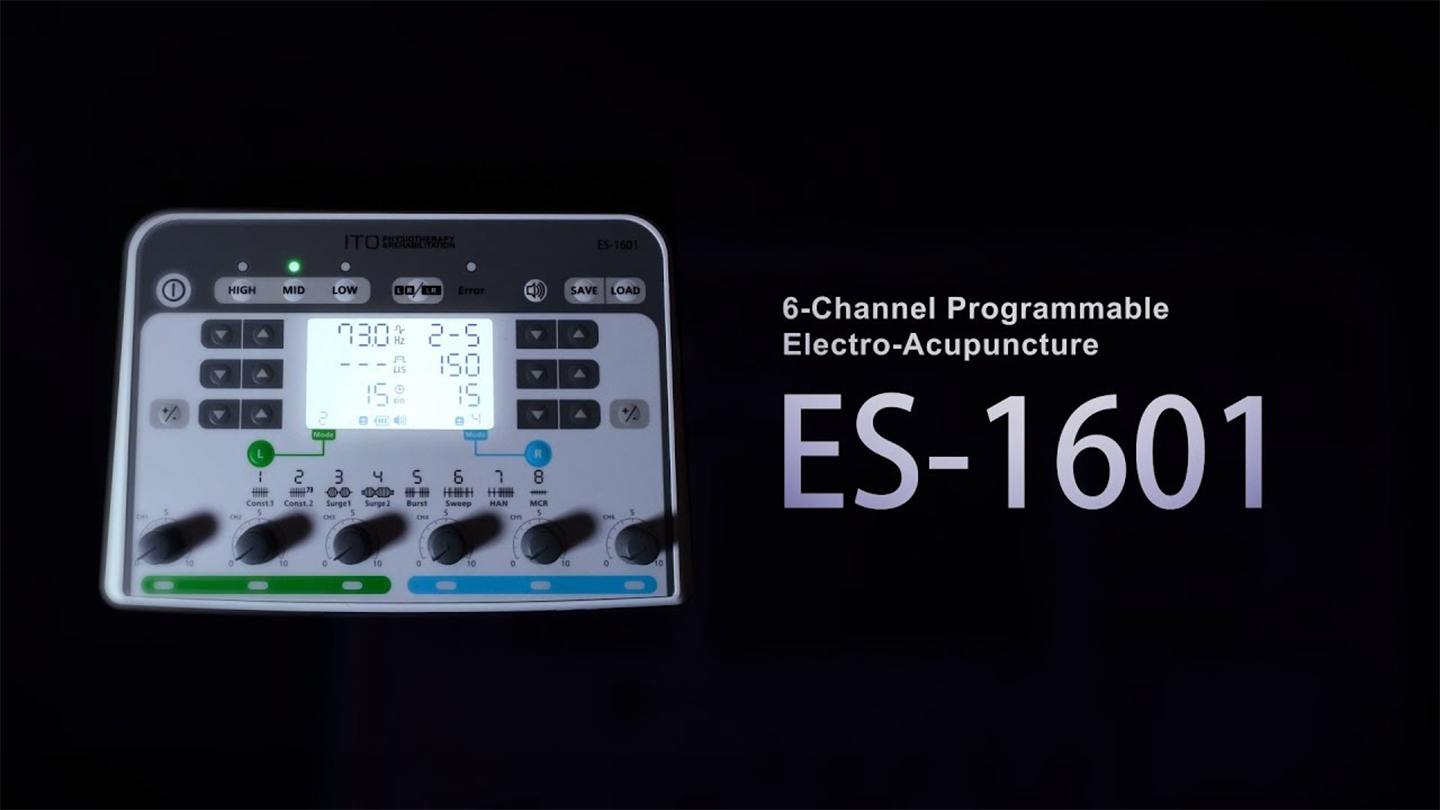

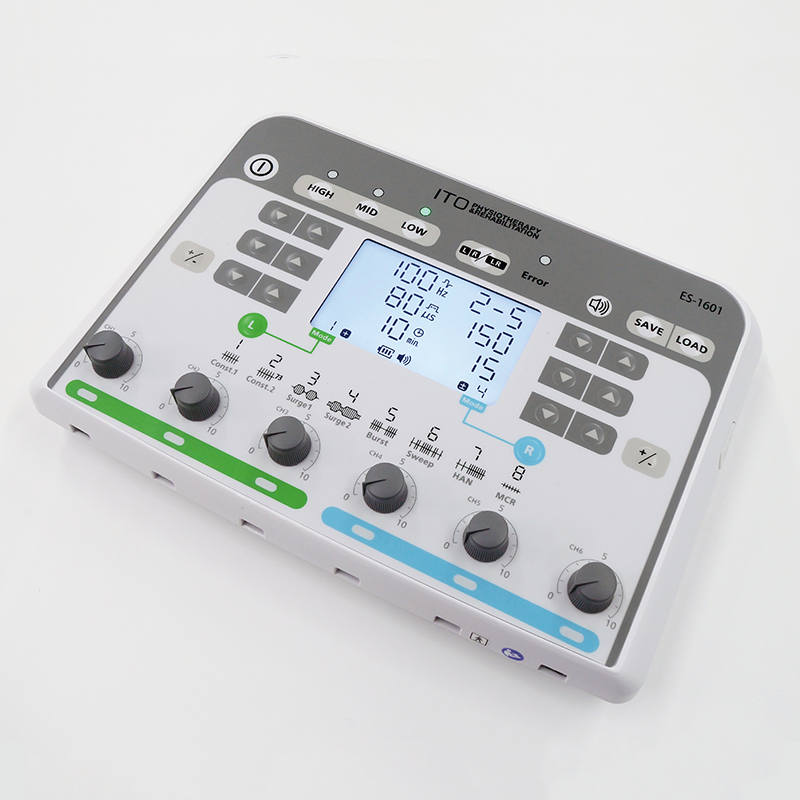

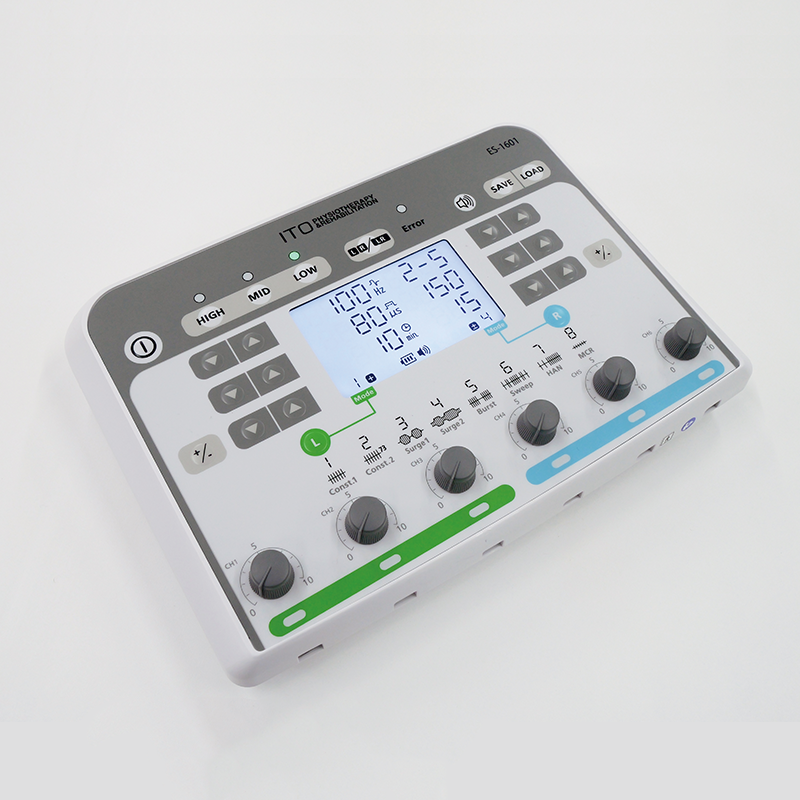

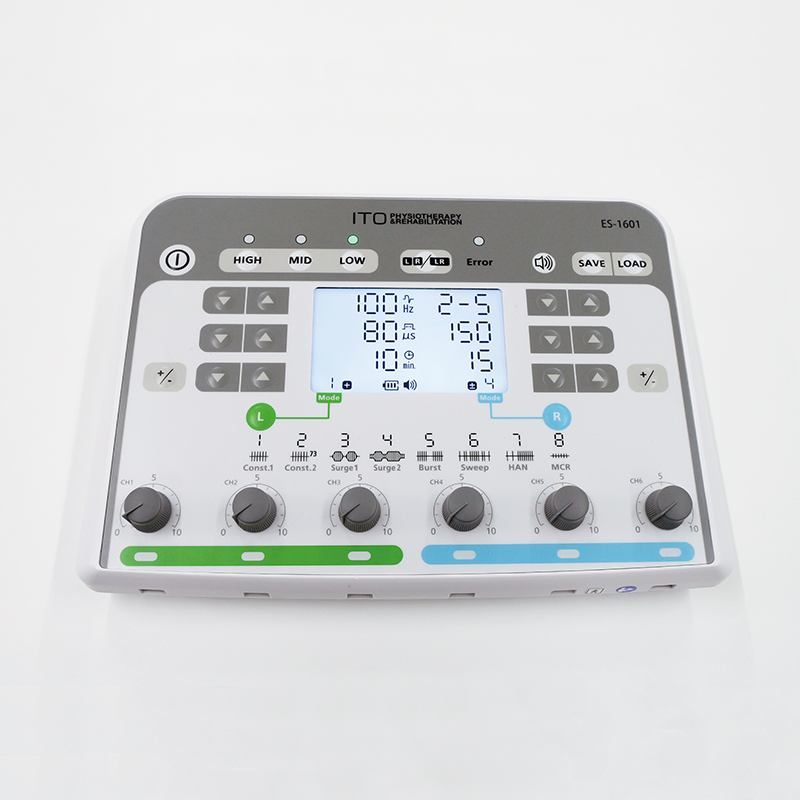

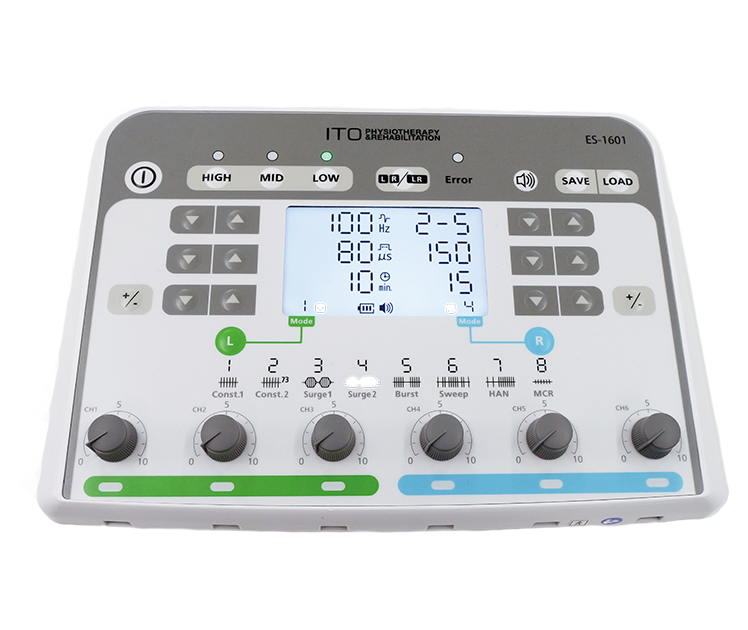

6-channel Programmable Electroacupuncture DeviceES-1601(Coming soon)

New Generation Programmable Electroacupuncture & Electrotherapy Device with 6-output Channels and Various Stimulation Modes Covering both Acupuncture and Physical Therapy.

Core Features

3CH AND 3CH INDIVIDUAL PARAMETER SETTING

The six output channels can be split into two groups of three, with independently adjustable parameters. This allows for different settings to be used simultaneously on different treatment areas.

3CH AND 3CH INDIVIDUAL PARAMETER SETTING

WIDE VARIETY OF TREATMENT MODES

The device offers eight treatment modes, addressing a wide range of needs, from electroacupuncture therapy to low-frequency electrostimulation for physiotherapy, such as NMES, TENS and MCR (Microcurrent) treatments.

WIDE VARIETY OF TREATMENT MODES

ITO'S ORIGINAL TREATMENT MODE

The "Surge2" mode, developed by ITO, uses a proprietary algorithm to combine high and low frequencies, generating a biological response highly effective for pain relief.

WIDE VARIETY OF TREATMENT MODES

Other Features

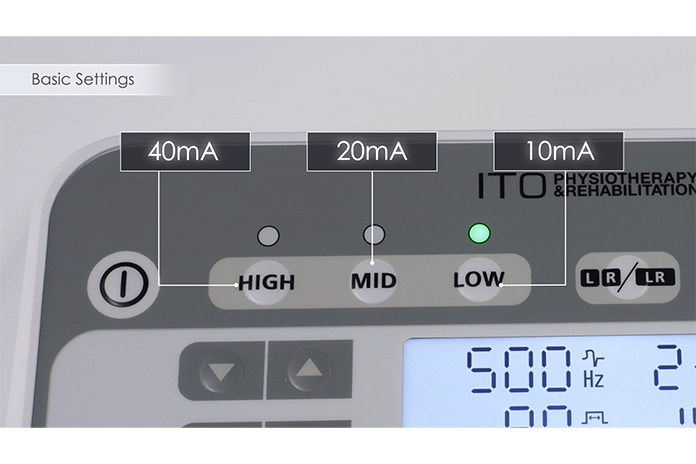

MAXIMUM INTENSITY SELECTION BUTTON

The maximum intensity selection button provides precise control over output power levels, ensuring optimal performance for various applications and patient needs: LOW: 10mA, MID: 20mA, HIGH: 40mA (*all peak values).

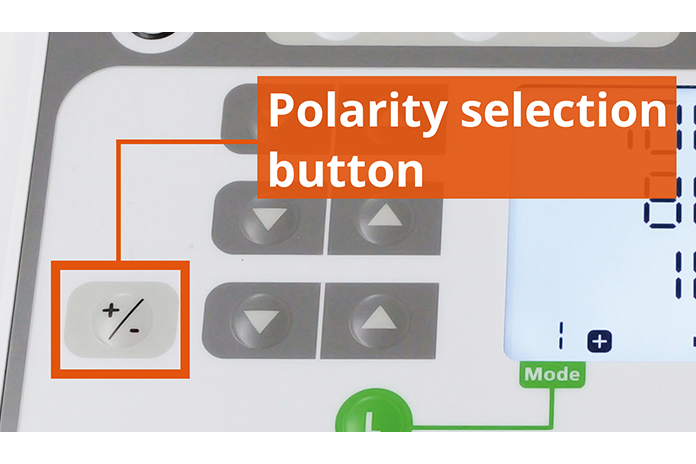

POLARITY SELECTION BUTTON

The polarity selection button allows for flexible adjustments to suit different treatment requirements with ease.

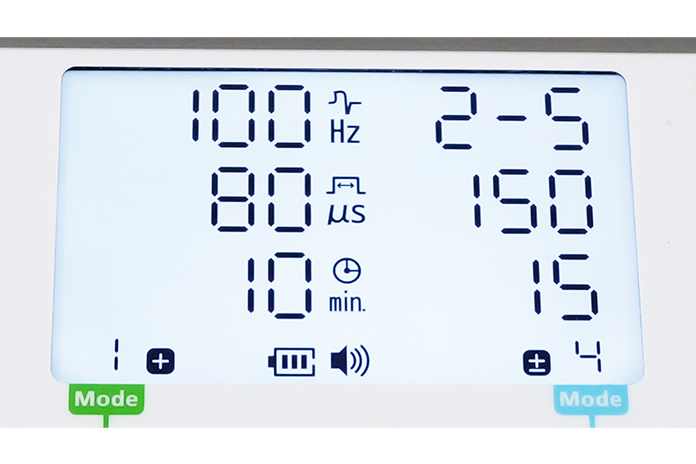

CLEAR LED DISPLAY

The easy-to-read LED display ensures clear visibility and easy operation.

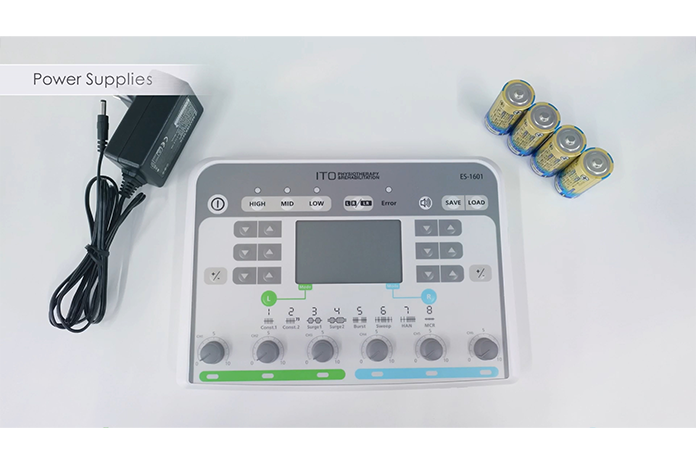

VERSATILE POWER OPTIONS

The device can be powered by both an AC adaptor (optional) and a battery, offering flexibility for use in different environments without compromising performance.

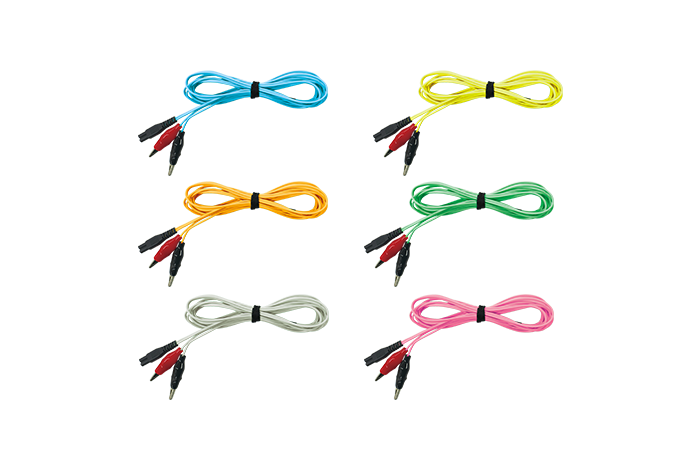

6 VIBRANT COLORED LEAD WIRES

We offer electrode lead wires in six distinct, vibrant colors to enhance visibility and make identifying specific output wires across channels easier.

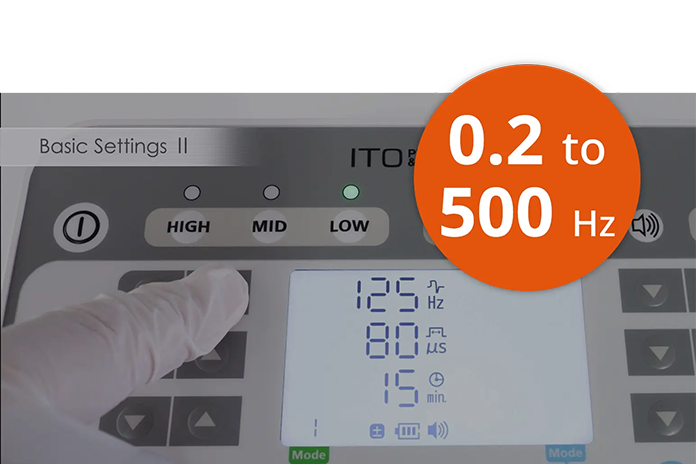

WIDE RANGE OF FREQUENCY SETTING

To maximize treatment effect, the device provides a wide frequency range, adjustable from 0.2 to 500 Hz, allowing for customized treatments to meet various conditions.

Examples of Use

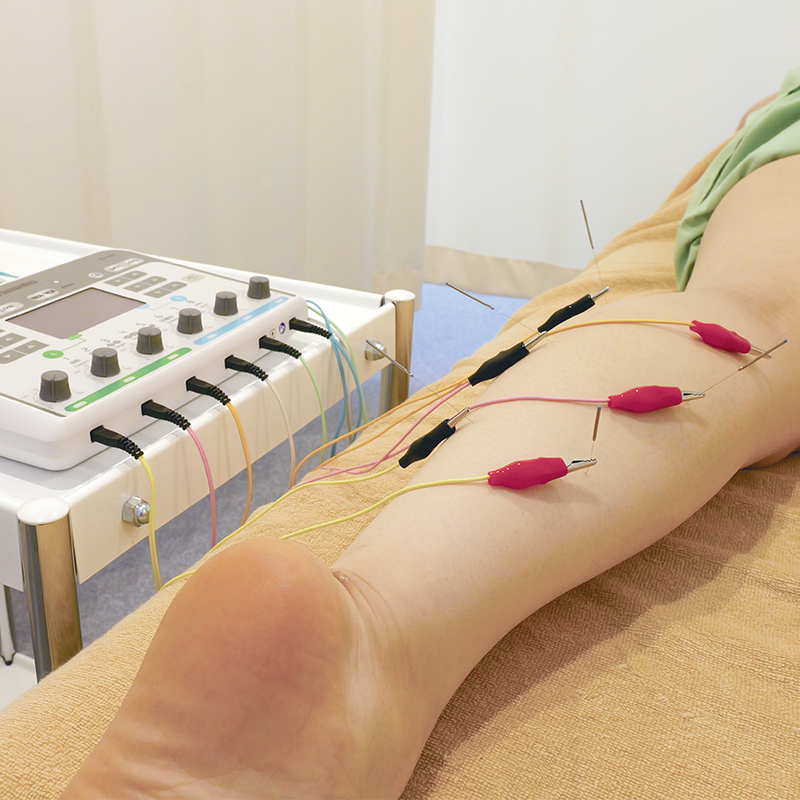

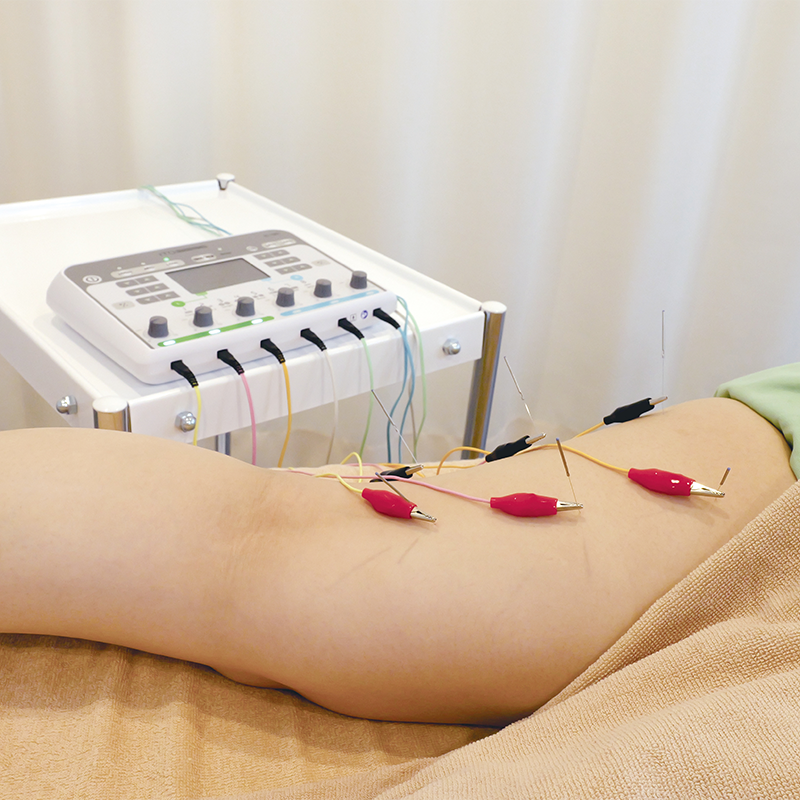

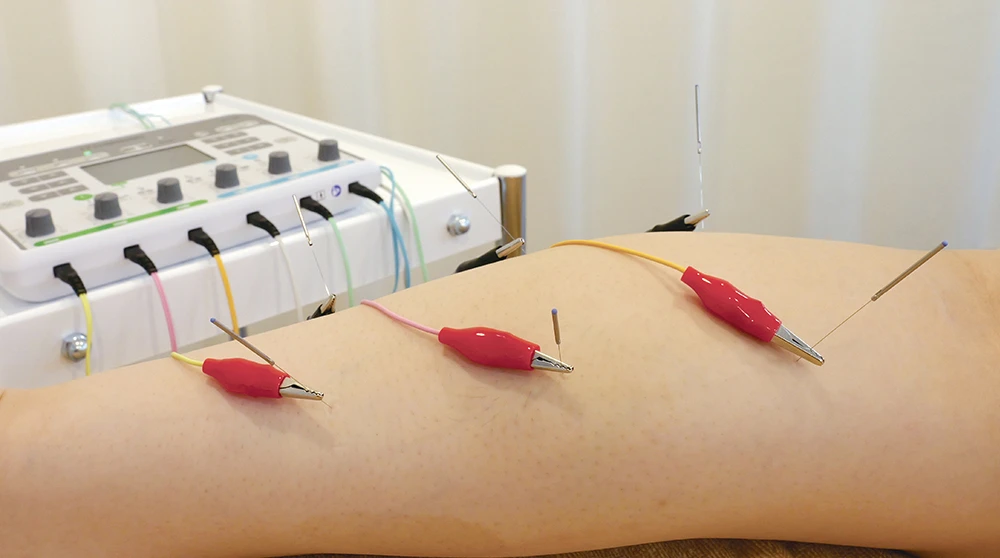

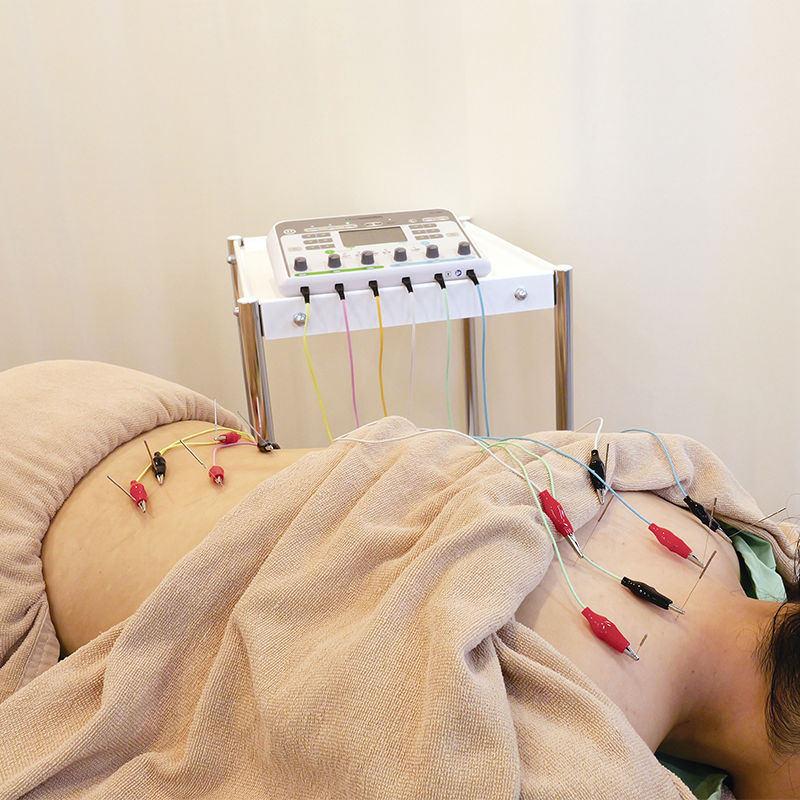

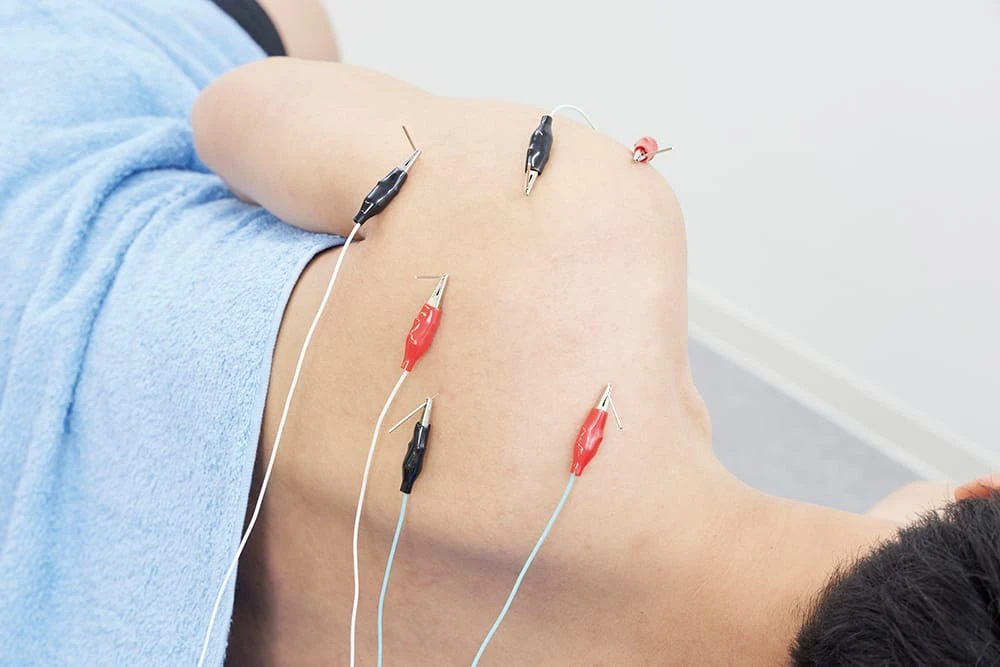

Examples of treatments with needle electrodes

Specification

Power supply
Main unit: 6 V DC (four LR14 (size C) alkaline batteries), 6.2 V DC (AC adaptor)
AC adaptor: 100-240 V AC, 50/60 Hz
Power consumption
12 VA + 10% (AC adaptor)
Output current
Max. 9.0 mA ± 10% (effective value, 500 Ω load)
DC component
Max. 740 μA ± 20% (500 Ω load)
Output voltage
Max. 40 V ± 20% (peak value, 500 Ω load)
Output
frequency
Max. 500 Hz ± 5% (500 Ω load)
Timer
Max. 60 min ± 5%
Safety class according
to IEC 60601-1
Class II, internally powered equipment, Type BF
Dimensions
241 (W) × 173.5 (D) × 46 (H) mm
Weight
Approx. 600 g (excluding batteries)

Waveform Specifications

1 Const.1

Const.1

A standard waveform with a constant frequency.

2 Const.2

Const.2

Developed in Europe, this innovative treatment protocol offers comprehensive solutions for a diverse range of symptoms.

3 Surge.1

Surge.1

Repeated electrostimulation and rest cycles induce muscle contractions, helping to train muscles with reduced functionality.

4 Surge.2

Surge.2

A uniquely developed pain relief mode that combines two distinct frequency characteristics into a single mode.

5 Burst

Burst

A low-frequency stimulation mode designed to reduce the intense sensation typically associated with low-frequency therapy.

6 Sweep

Sweep

Modulates from the lowest to the highest frequency to prevent the body from getting used to the stimulation.

7 HAN

HAN

A clinically validated treatment protocol, widely utilized, alternates between different frequencies to effectively reduce pain.

8 MCR (Microcurrent)

MCR (Microcurrent)

A microcurrent therapy to speed up tissue repair and promote healing.
