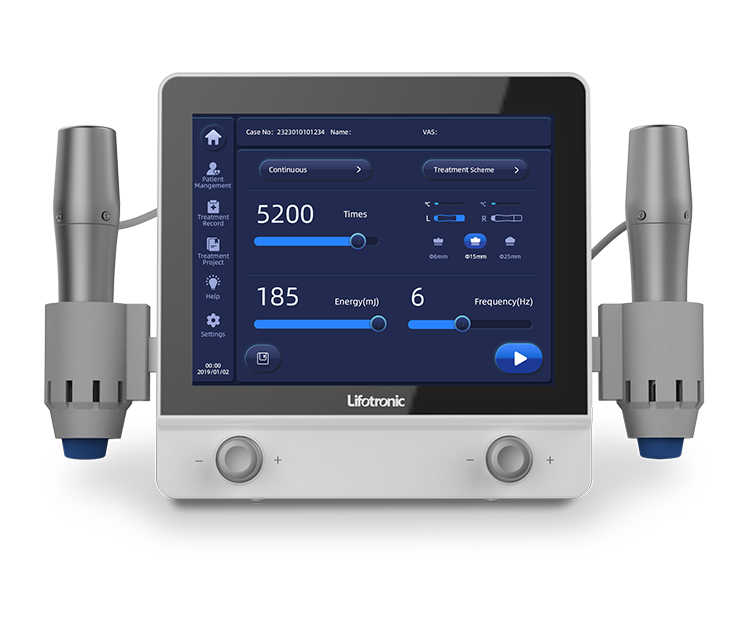

Extracorporeal Radial Shockwave Therapy SystemLC-320
High-end Radial Shockwave Therapy System with Two Electromagnetic Ballistic Type Handpieces and 30 Pre-set Clinical Programs with Body Diagram Installed.
Core Features

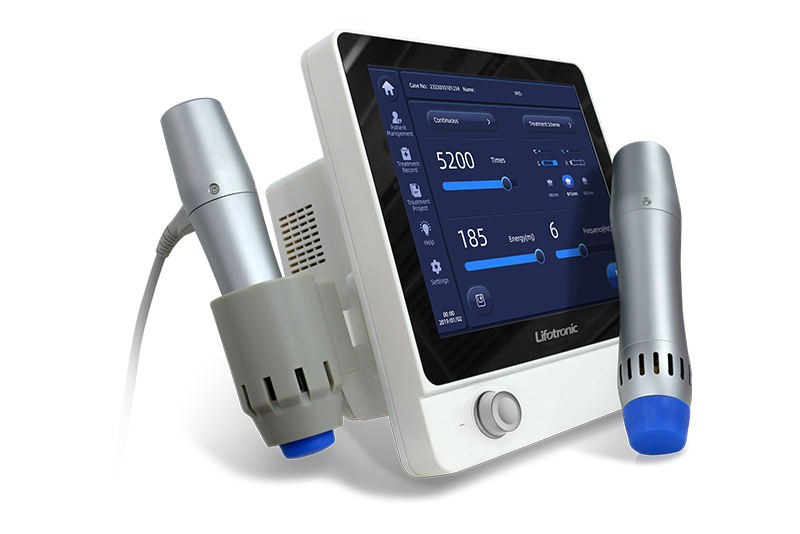

DUAL HANDPIECES
Designed for therapists and facilities treating multiple patients daily. Alternating between the two handpieces reduces cooling wait times, enabling more efficient treatments.
LARGE COLOR TOUCH SCREEN
Features a 12.1-inch color touch screen enhancing visibility and usability.
CONVENIENT TO CARRY
Weighing only 3.8 kg, featuring a transport-friendly design.
Other Features
PRE-SET CLINICAL PROGRAMS
Comes with 30 customizable pre-set programs with a body diagram. The device can store over 500 additional programs.
TREATMENT RECORD PRESERVATION
Stores up to 60,000 treatment records, with the option to expand using an SD card (SD card not included).
EASY FREQUENCY AND INTENSITY CONTROL
Features dedicated volume knobs for quick and precise adjustment of frequency and intensity.
QUICK TREATMENT START
Start treatments easily with a single touch or by utilizing the optional foot switch.
EXCLUSIVE CART AVAILABLE
An exclusive cart (optional) enhances the usability and mobility of the LC-310/320.
MULTIPLE APPLICATOR SIZES
The standard package includes three different applicators (6mm, 15mm, 25mm) to adjust the energy density for various treatment purposes.
HANDPIECE TEMPERATURE AND USAGE MONITORING
Users can monitor the handpiece temperature on the screen and view cumulative shot time in the settings menu, ensuring optimal performance.
Gallery
Specification
- Technology
- Electromagnetic ballistic radial shock wave
- Energy
- 60-185 mJ in 10 mJ increments
- Frequency
- 1-22 Hz
- Handpiece
quantity - 2 handpieces
- Burst modes
- Continuous mode, 4 pulses, 8 pulses, 12 pulses
- Interface
- 12.1-inch color LCD touch screen
- Projectile durability
- 2,000,000 shots per handpiece
- Transmitters
- 3 of different diameters (6mm, 15mm, 25mm)
- Memory
- Local and SD card
- Overall
dimensions - 380 (W) × 390 (D) × 340 (H) mm
- Weight
- Net Weight: 6kg
Gross Weight: 8kg - Power supply
- AC 100-240 V, 50/60 Hz
