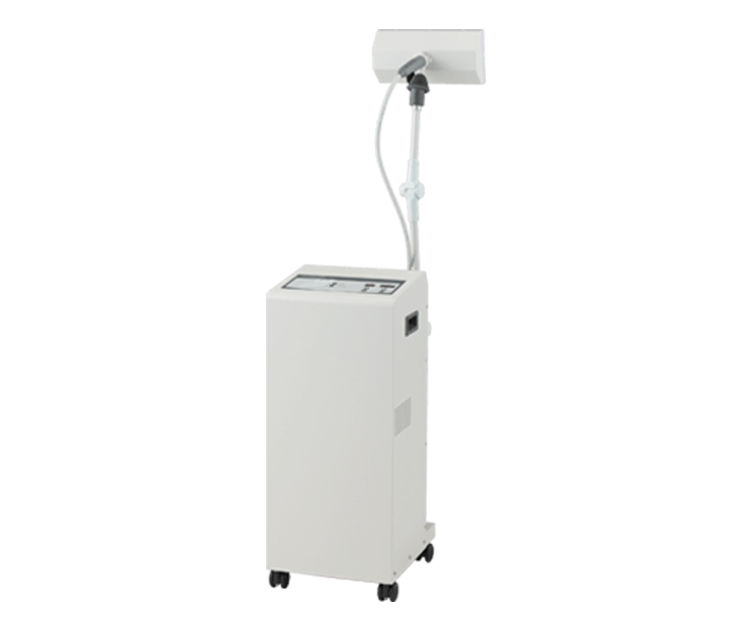

Microwave Diathermy PM-810+
Pulsed & Continuous Microwave Therapy Unit with single channel
Core Features
EFFORTLESS TRANSITION BETWEEN PULSED AND CONTINUOUS MODE
You can easily switch between Pulsed and Continuous modes by pressing button on the operating panel.
SPACE-SAVING DESIGN
Our unit is 12cm narrower and 6cm shallower than our previous microwave diathermy models.
The smaller dimensions of the products do not occupy much space of treatment room.

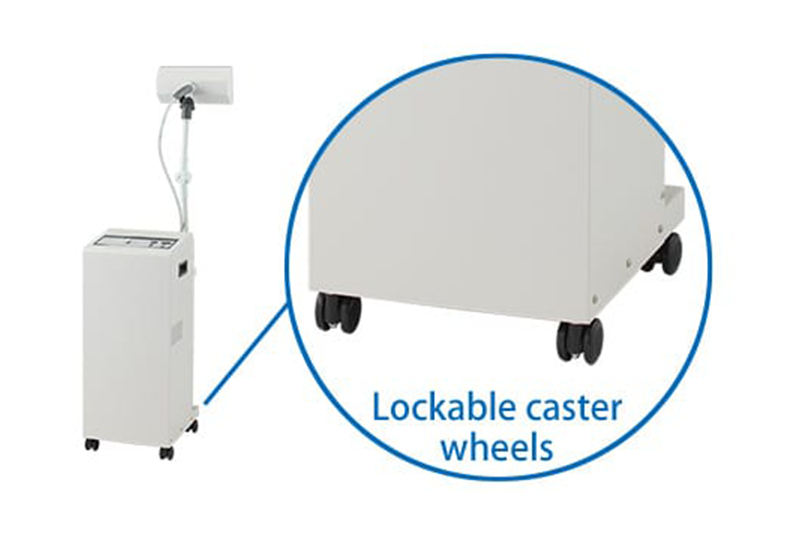

SAFE INSTALLATION
Lockable caster wheels help to safely install the unit.
VERSATILE APPLICATOR
Just right size of rectangular appicator covers both small and medium treatment areas.

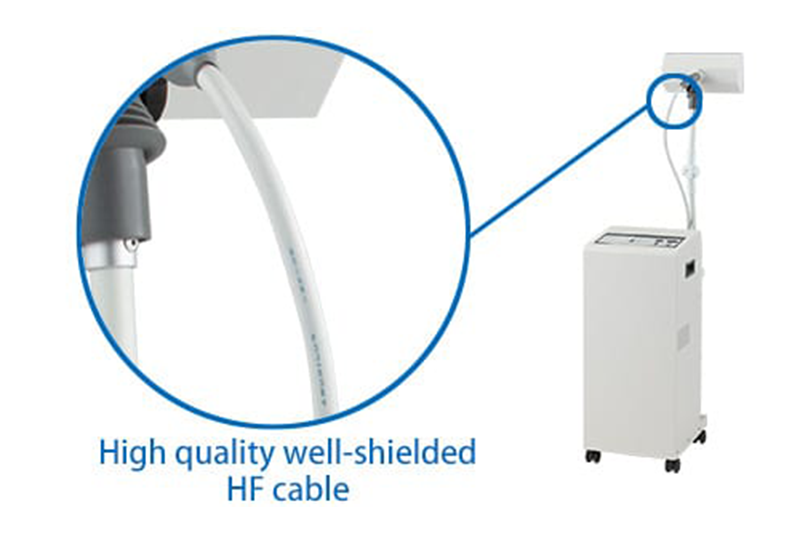

HIGH QUALITY HF CABLE
High quality well-shielded HF cable provides trouble-free operation.
Specification
- Power supply
- AC 110, 220 or 230 V, 50/60 Hz
- Power consumption
- 110 V: 850 VA
220 V: 760 VA
230 V: 770 VA - Safety class according
to IEC 60601-1 - Class I, Type B
- Dimensions
- 330 (W) x 395 (D) x 790 (H) mm (main unit)
- Weight
- 28 kg (without applicator)
- Output mode
- Continuous, Pulsed
- Maximum output power
- Continuous: 100 W
Pulsed: 100 W mean power, a fixed peak power of 1500 W - Frequency
- 2450 MHz
- Timer
- Max. 30 min.
- Applicator size
- 293 x 150 mm
